Architectural systems are explored through detailed physical models that break down how buildings are put together. The focus is on understanding the different components of a system, how they connect, and how they collectively function within a larger structure. By reconstructing these assemblies at a model scale, the studies demonstrate the logic of construction techniques and their applications.

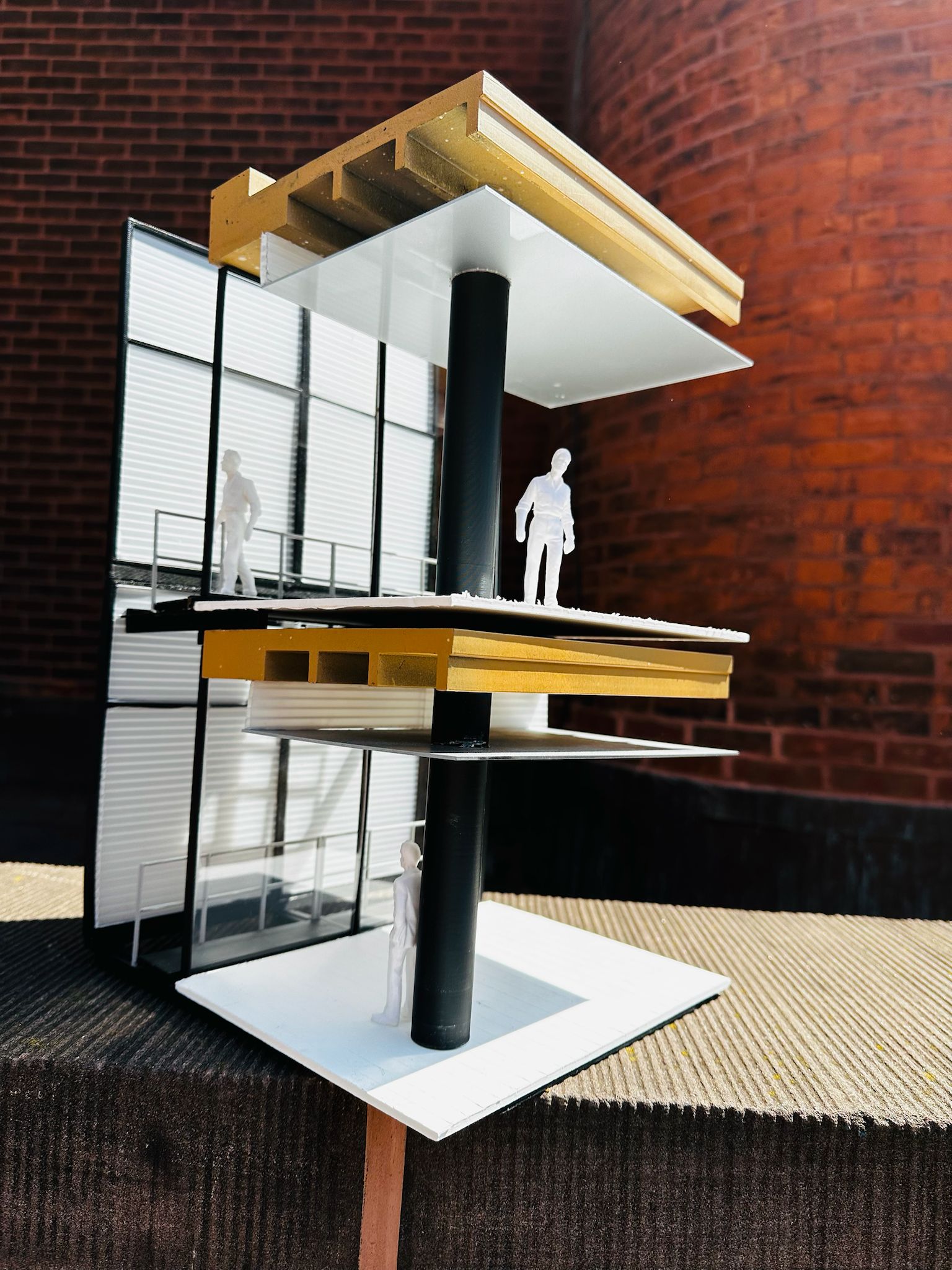

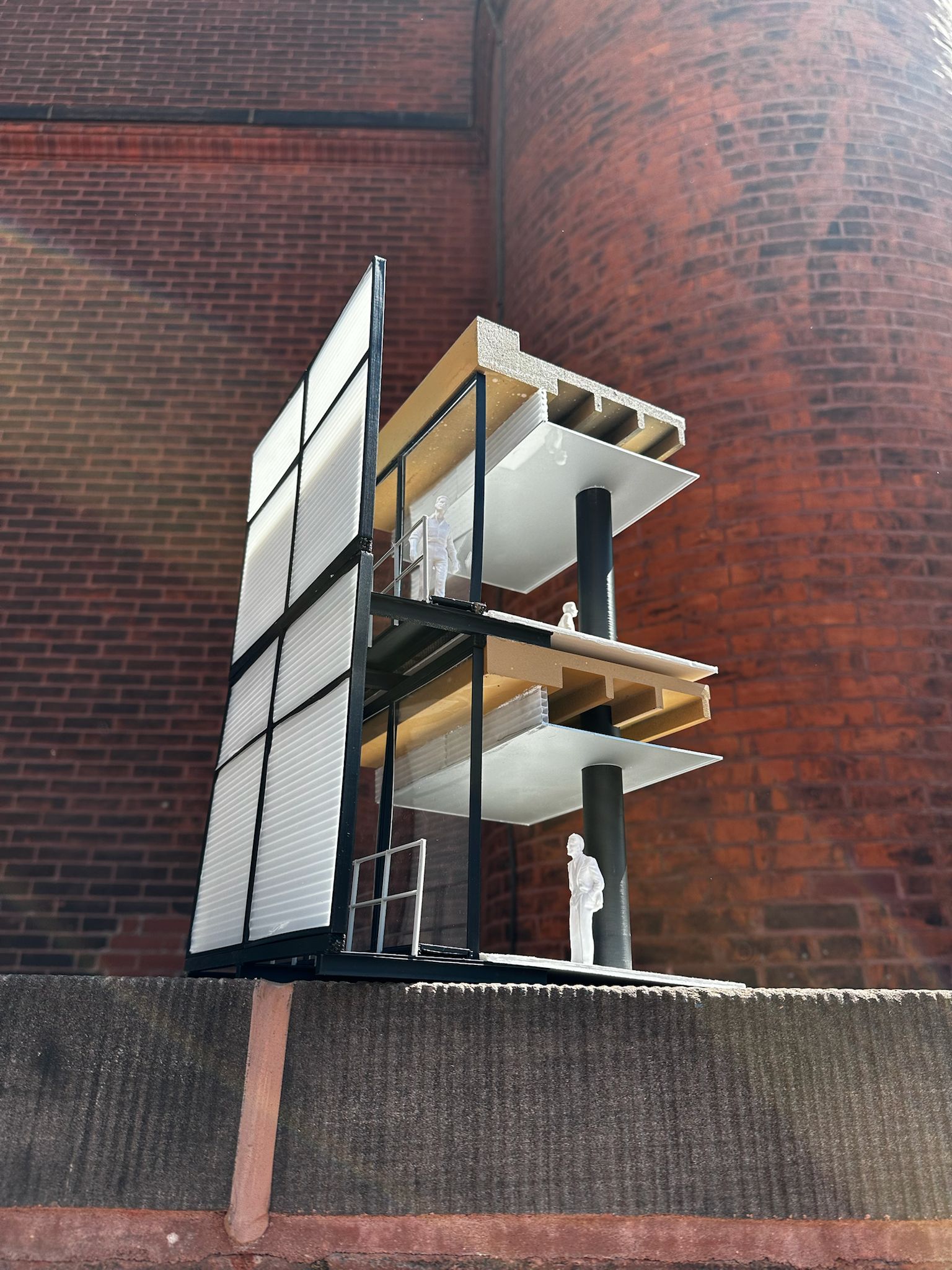

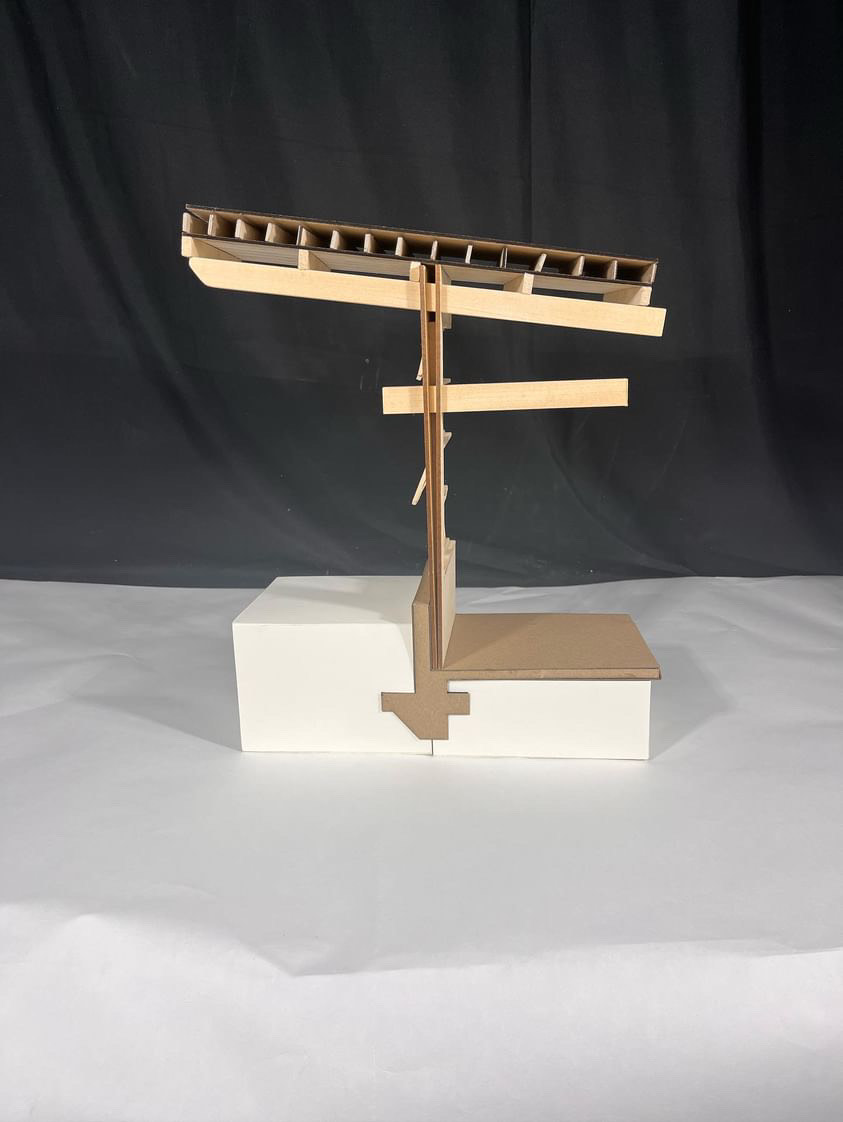

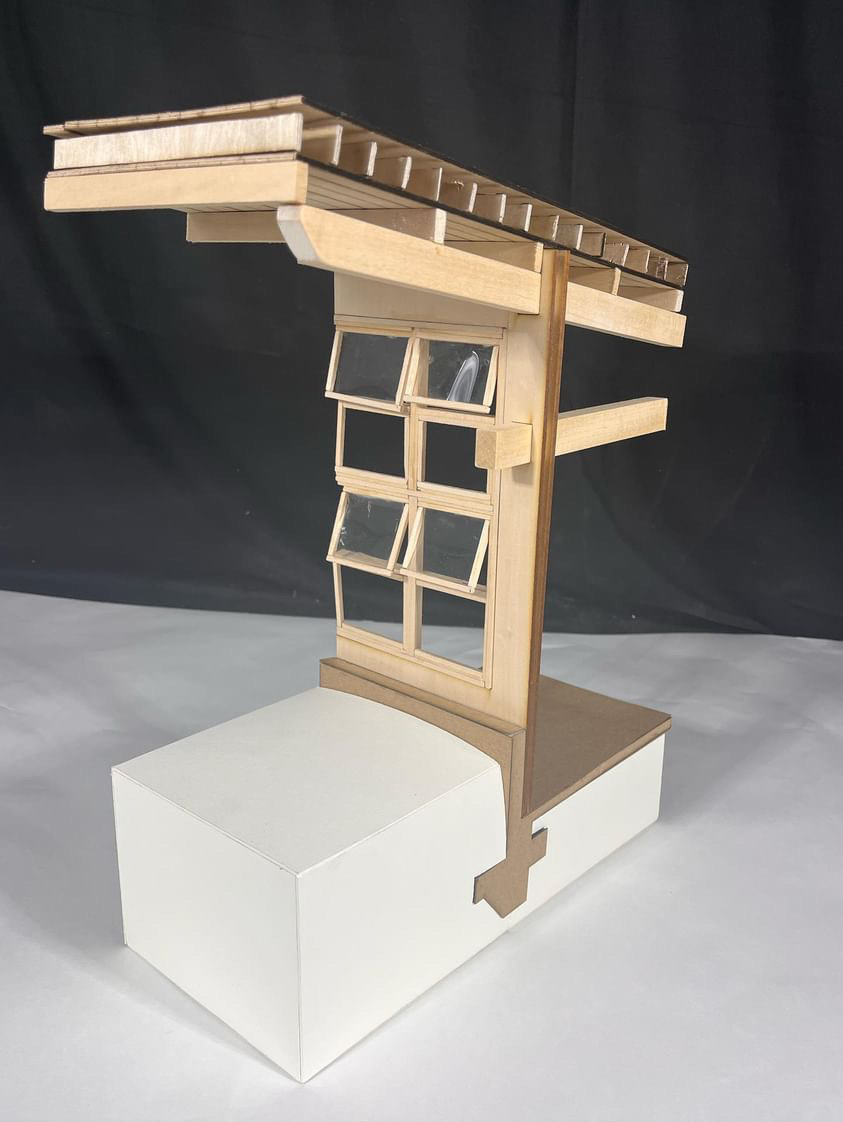

Double-Skin Façade → This model demonstrates the double-skin façade of the Genzyme Center by Behnisch Architekten. The system consists of an outer glazing layer, an inner operable façade, and a ventilated cavity with adjustable louvers. Different materials were used in the model to highlight each distinctive part, making the assembly’s logic clear.

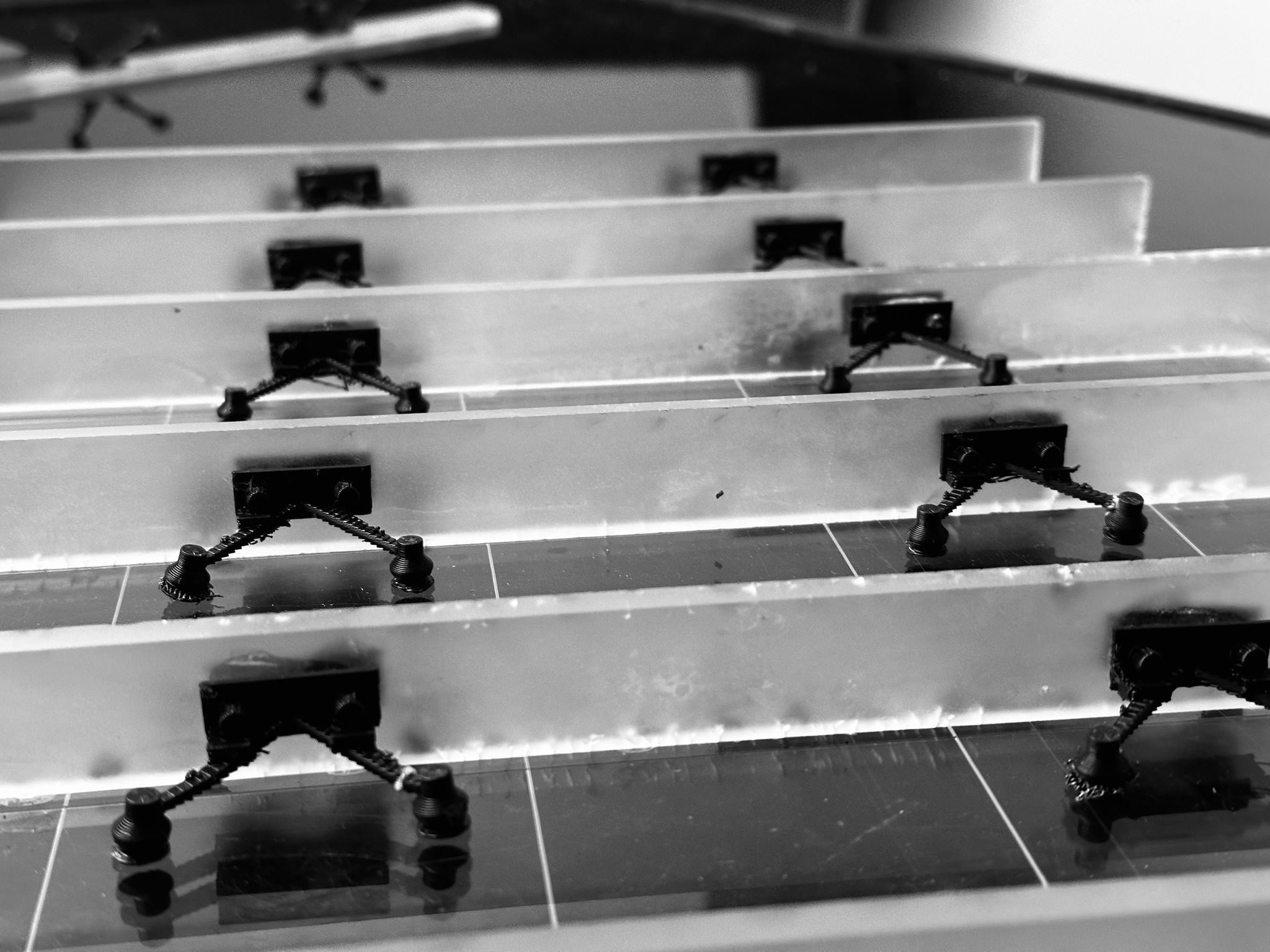

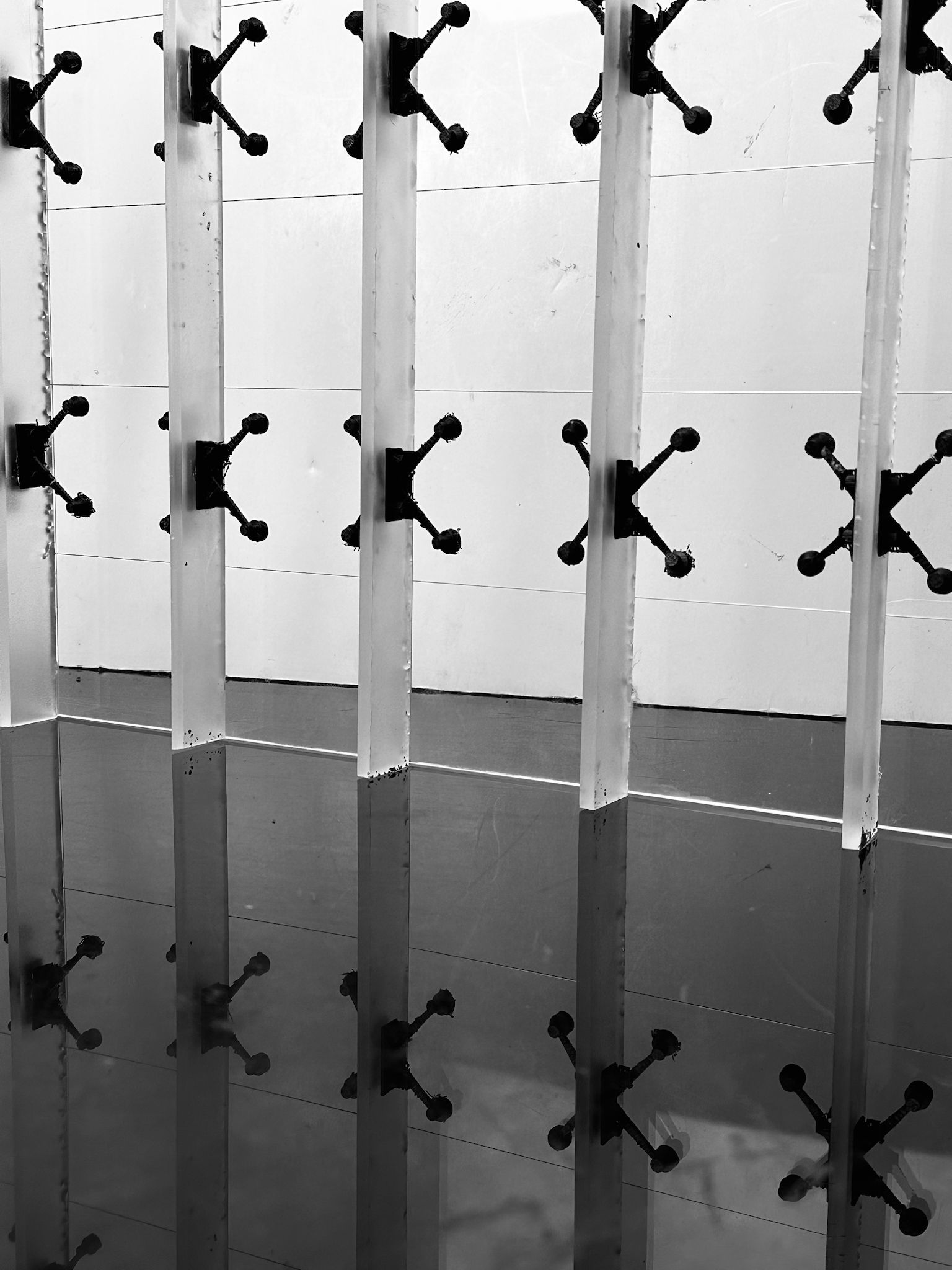

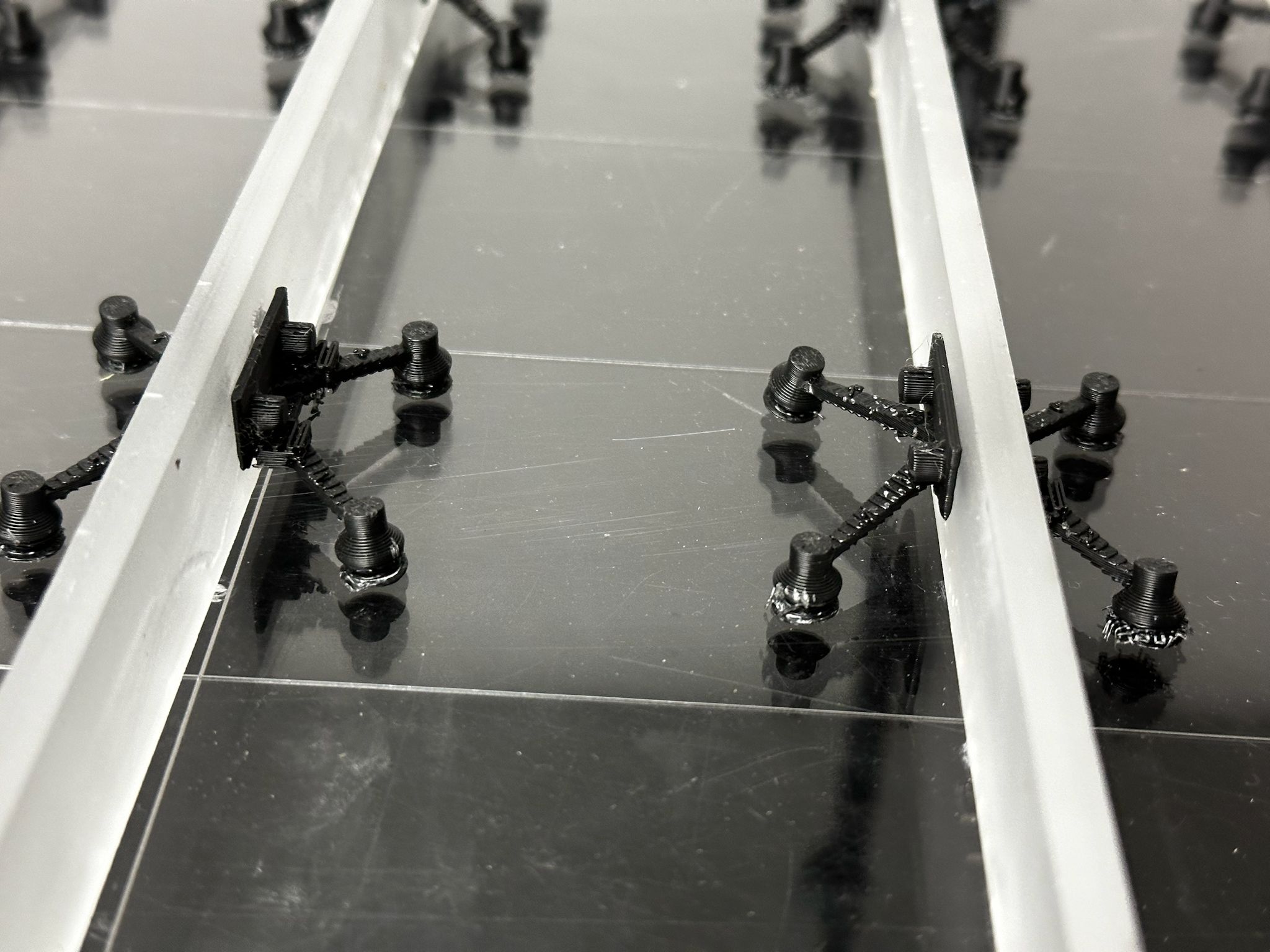

Spider Clamp Glass System → Illustrates a point-supported glazing assembly using stainless steel spider fittings, tempered glass panels, stainless steel bolts, and silicone gaskets. Highlights how panels are fixed while maintaining transparency and structural stability.

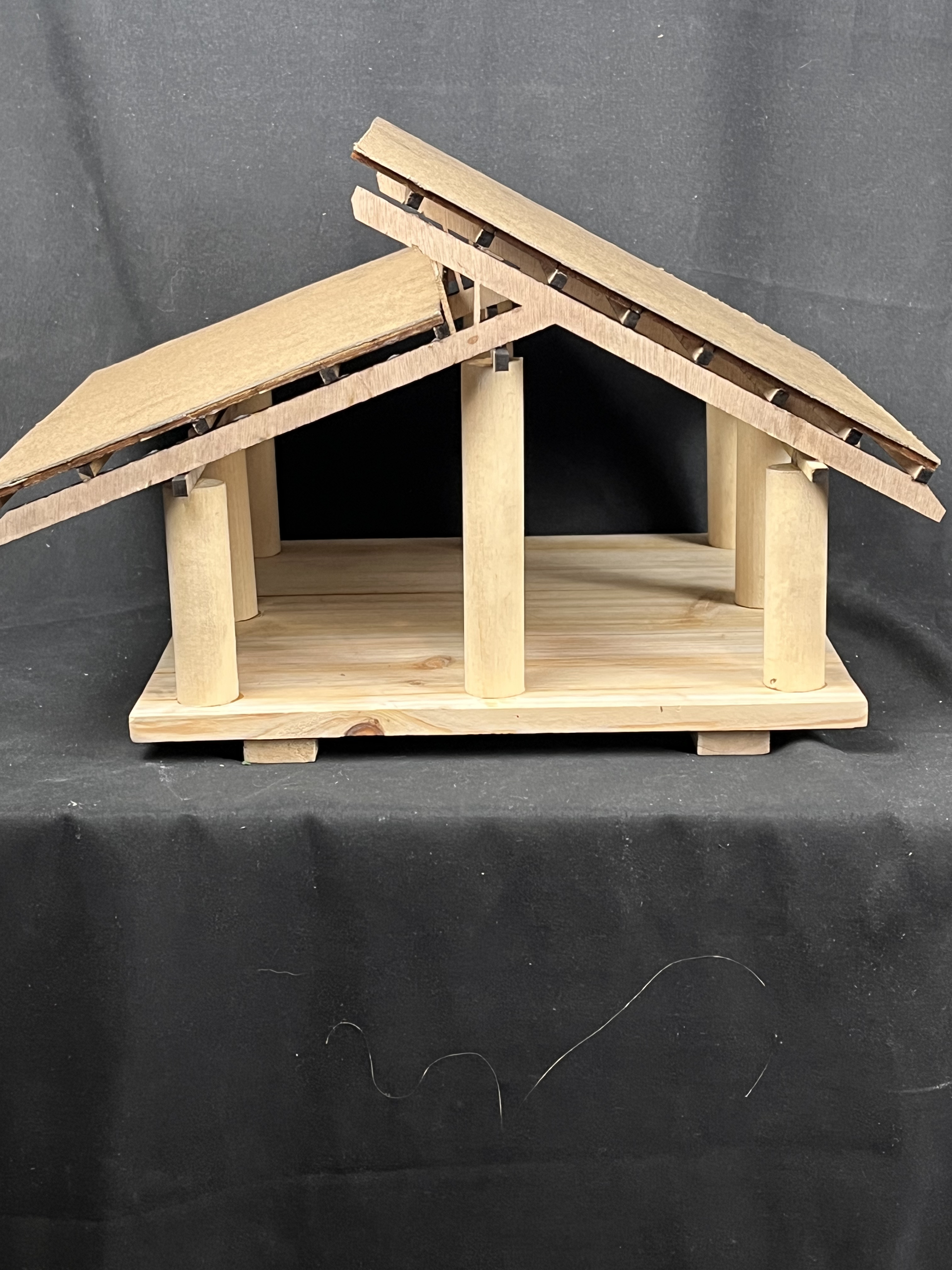

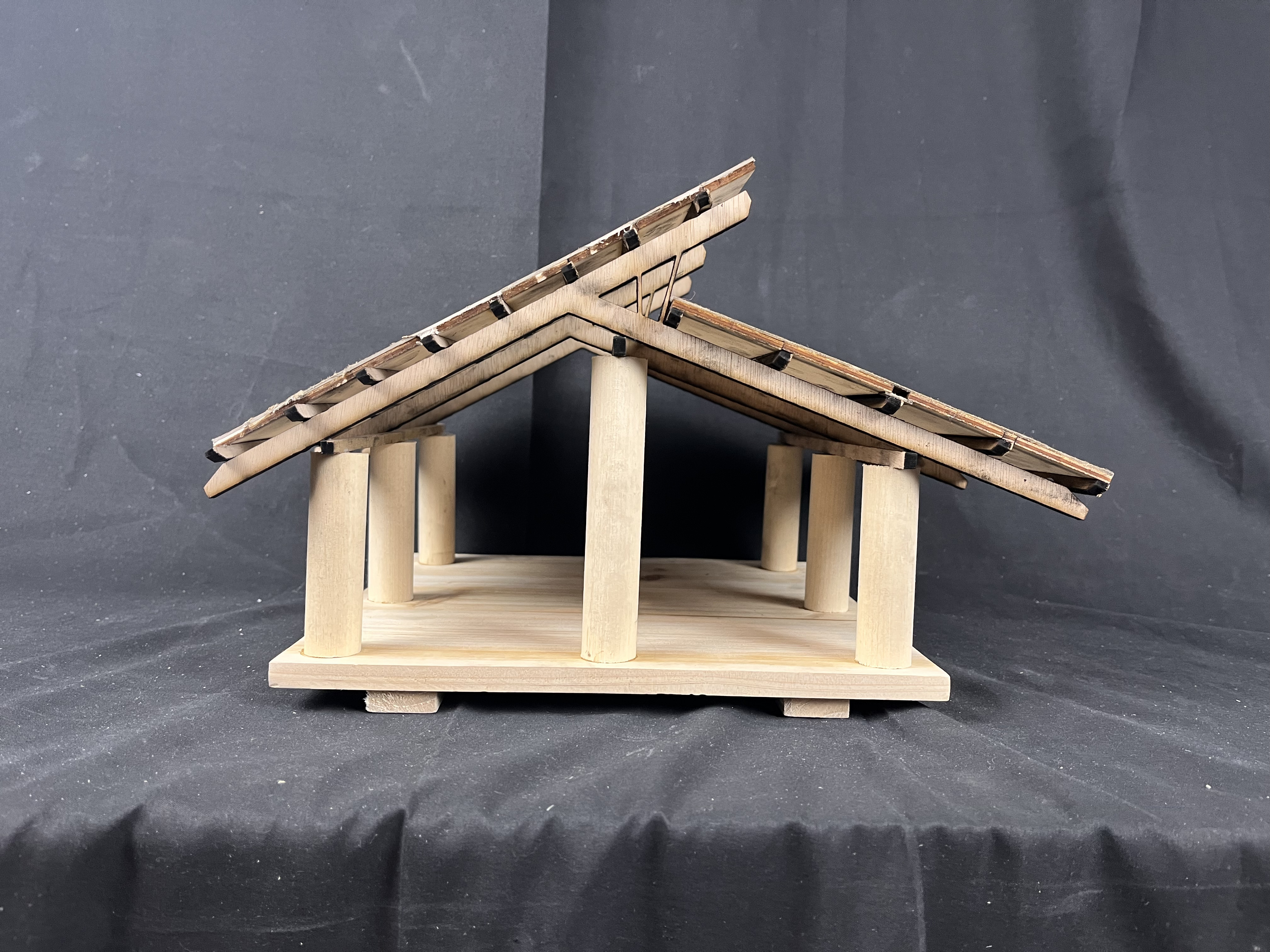

Gambrel Roof Structure → Shows the double-sloped roof assembly, including rafters, ridge beam, purlins, roof trusses, and cladding panels. Demonstrates how these components are connected to create a stable and functional roof system.
